Oil Specs and Resets provides up-to-date OEM information on your diagnostic tool, via wireless network connection with our Snap-on Information Service. This feature allows you to quickly access the following OEM information:

●

Engine oil service reset procedures

●

Engine oil specifications

In addition, you can perform engine oil service resets using the diagnostic tool (if supported).

— Oil Specs and Resets coverage includes domestic and import cars, light trucks, and vans. Coverage is limited to vehicles sold through dealerships only in the United States.

— All vehicles may not have on-board diagnostic tool reset capabilities, or information available.

— If you experience a wireless connection loss, the Oil Specs and Resets function may stop. To continue use, you must re-establish your Internet connection.

The information and procedures provided by the Oil Specs and Resets function is vehicle specific, therefore a vehicle must be identified before information can be displayed.

There are two methods to access this function:

●

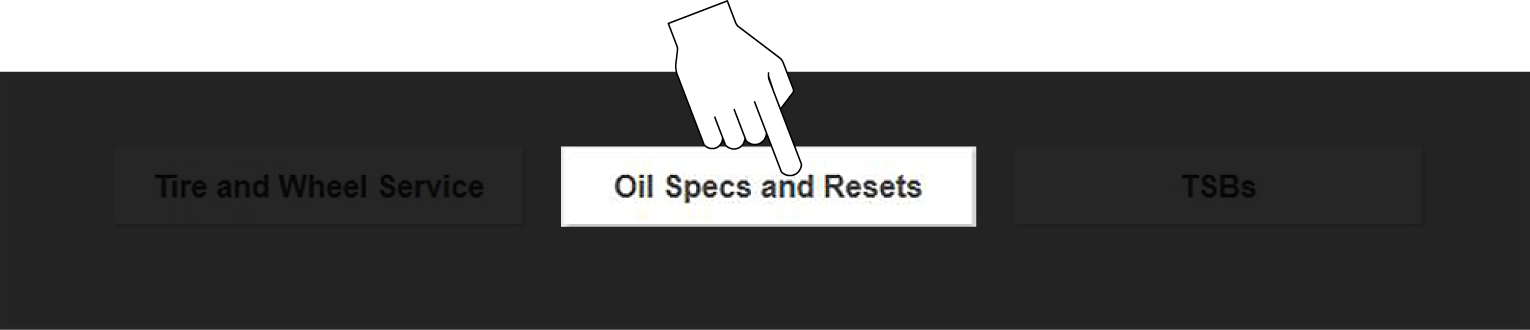

From the Home screen - select the Quick Lookups icon, then select the Oil Specs and Resets menu option , then proceed to Step 1.

●

From within a current Scanner session - select Oil Specs and Resets from the Select System menu, then proceed to Step 3.

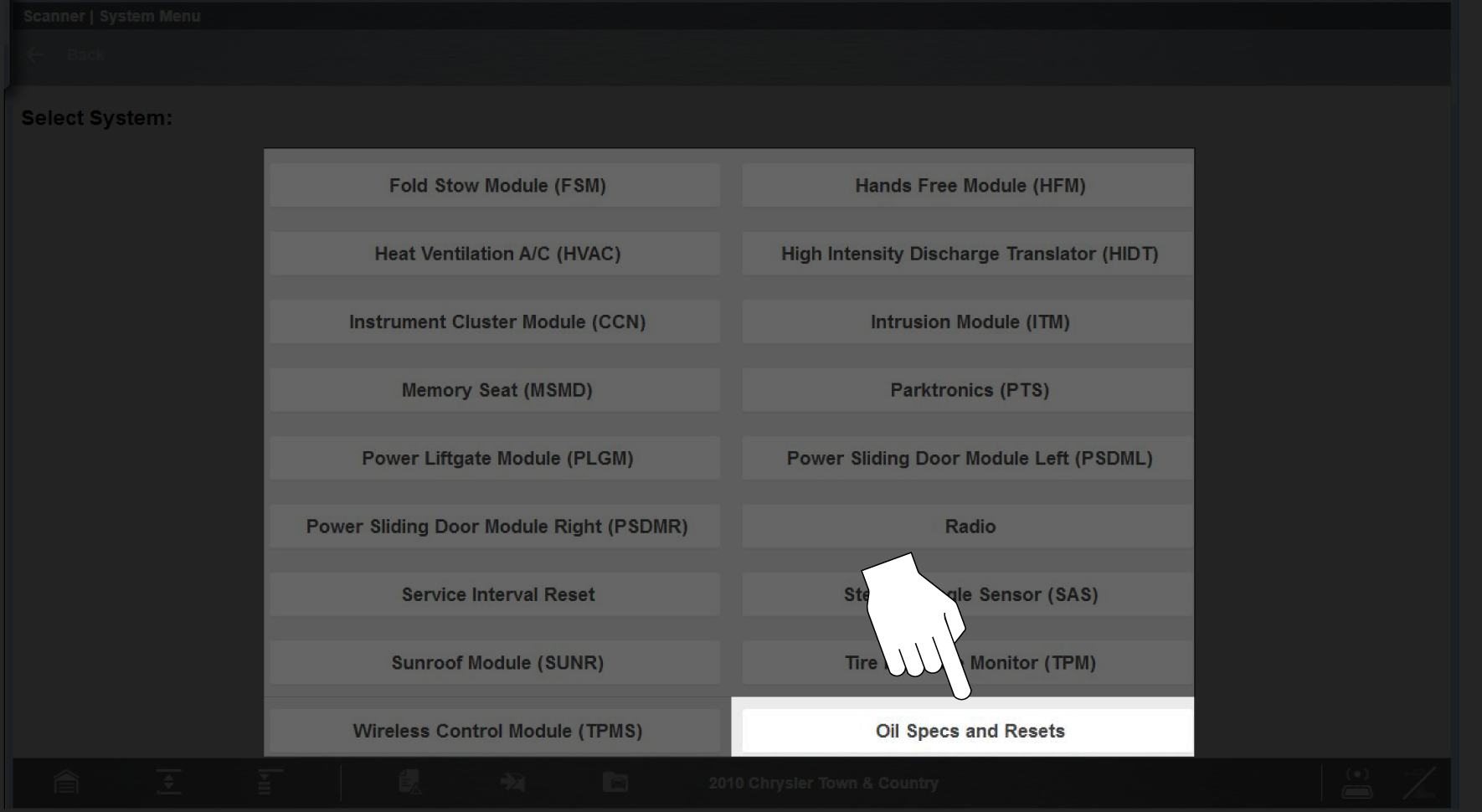

Scanner System Menu - Oil Specs and Resets Option

1.

Follow the screen prompts to select vehicle attributes (e.g. Manufacturer, Year, Model etc.).

2.

Select OK to confirm the vehicle.

3.

Wait for the OEM Information screen to be displayed. The Fluid Capacities screen is displayed by default, other options are available from the toolbar:

●

Print - opens the print preview screen. See Printing / Printer Setup.

●

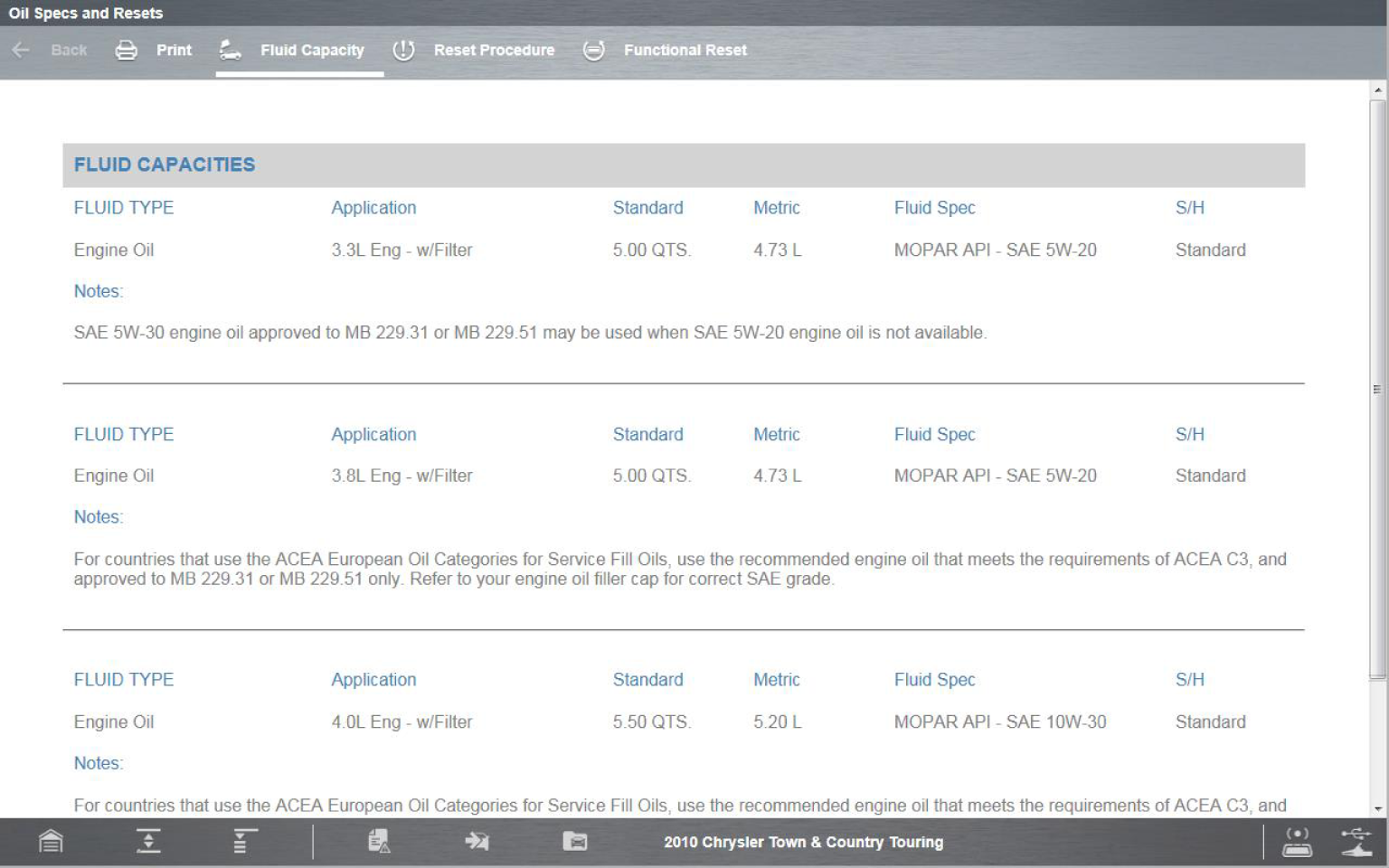

Fluid Capacity - Displays OEM recommended engine oil specification and capacity information.

●

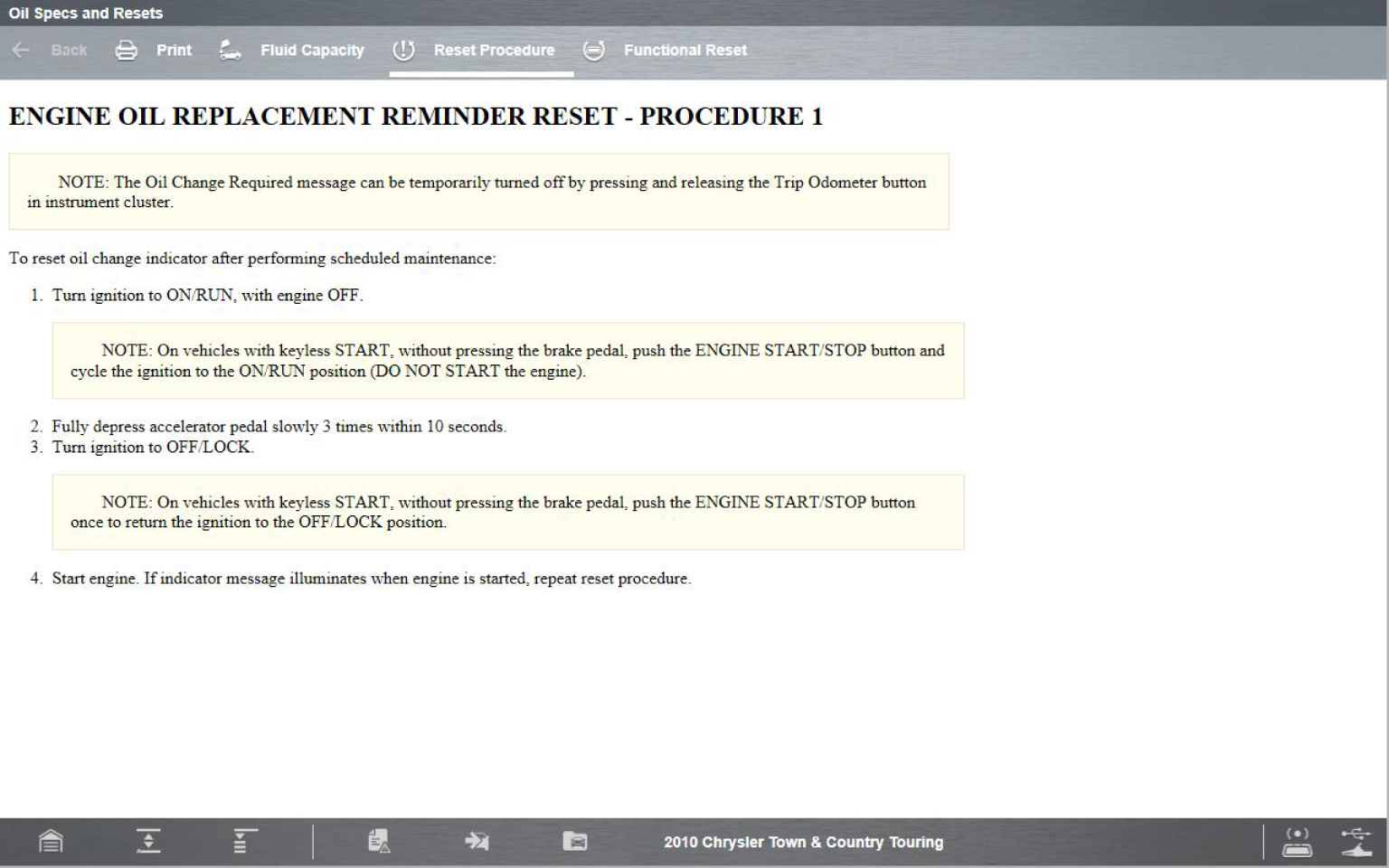

Reset Procedure - Displays OEM engine oil service interval reset instructions, for the manual reset of the oil service indicator.

●

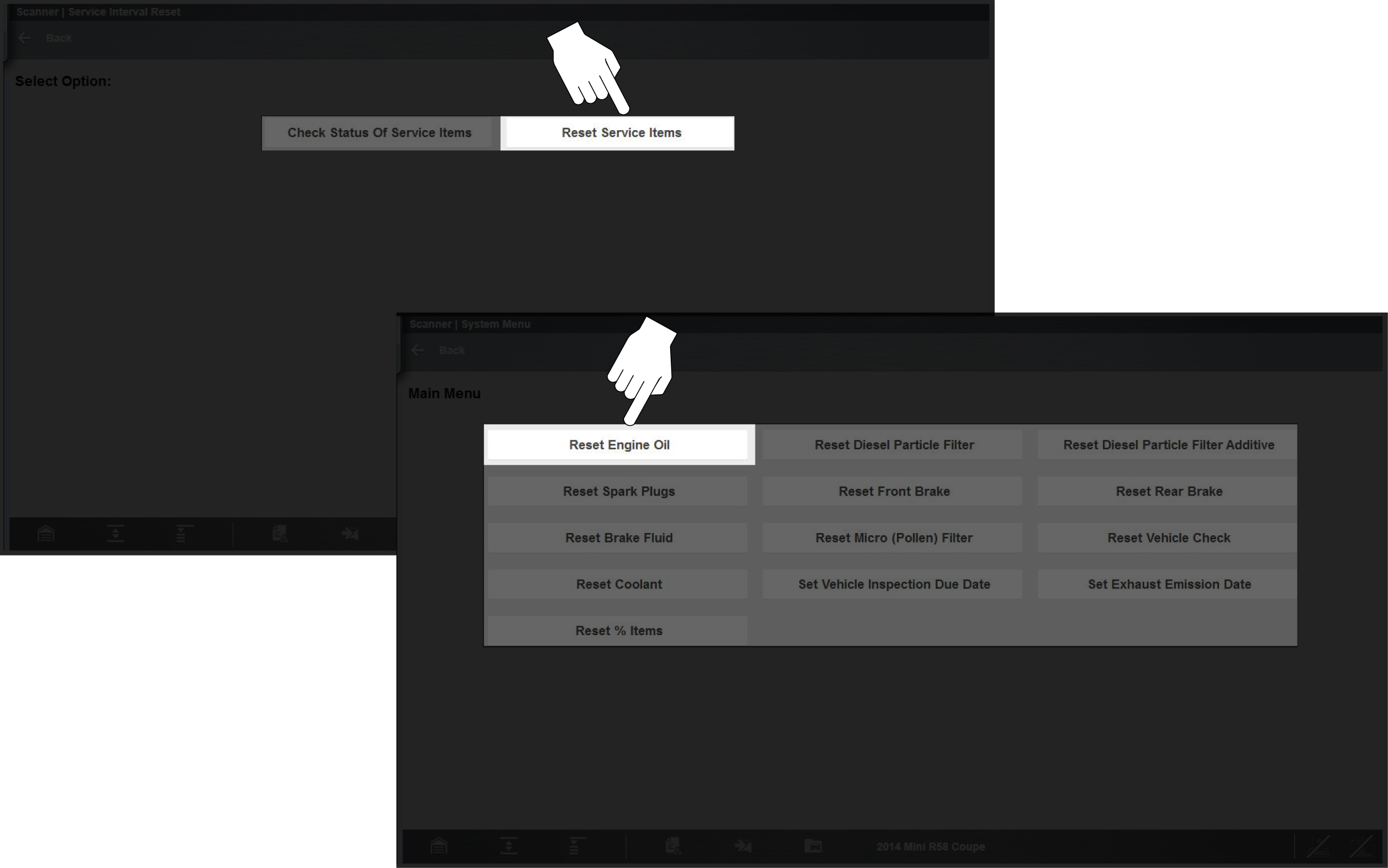

Functional Reset (if supported by the vehicle) - Opens the vehicle specific functional reset menu, allowing you to use the diagnostic tool to reset the oil service indicator.

Not all vehicles may support on-board diagnostic tool reset capabilities, or provide reset instructions or specifications.

The TSBs function can provide the following (if available) for the identified vehicle:

●

Original Equipment Manufacturer (OEM) Technical Service Bulletins, Recalls and Campaigns

●

National Highway Traffic and Safety Administration (NHTSA) recalls

●

Technical Tips and Service News Information from select manufacturers

●

Updated Service Information

●

Updated Part Numbers and Components

— TSBs coverage includes domestic and import cars, light trucks, and vans.
Coverage is limited to vehicles sold through dealerships only in the
United States.

— If you experience a wireless connection loss, TSBs data will not refresh
and/or may cause the program to stop. To continue use, you must
re-establish your internet connection.

Accessing TSBs (when a vehicle is previously identified):

When a vehicle has been previously identified, you can access TSBs by selecting the TSBs icon from the toolbar menu . The TSBs icon on the toolbar menu becomes active (icon displays with safety symbol) after a vehicle has been identified. See Identifying the Vehicle for additional information on identifying a vehicle.

To select TSBs, see Using the TSBs function:

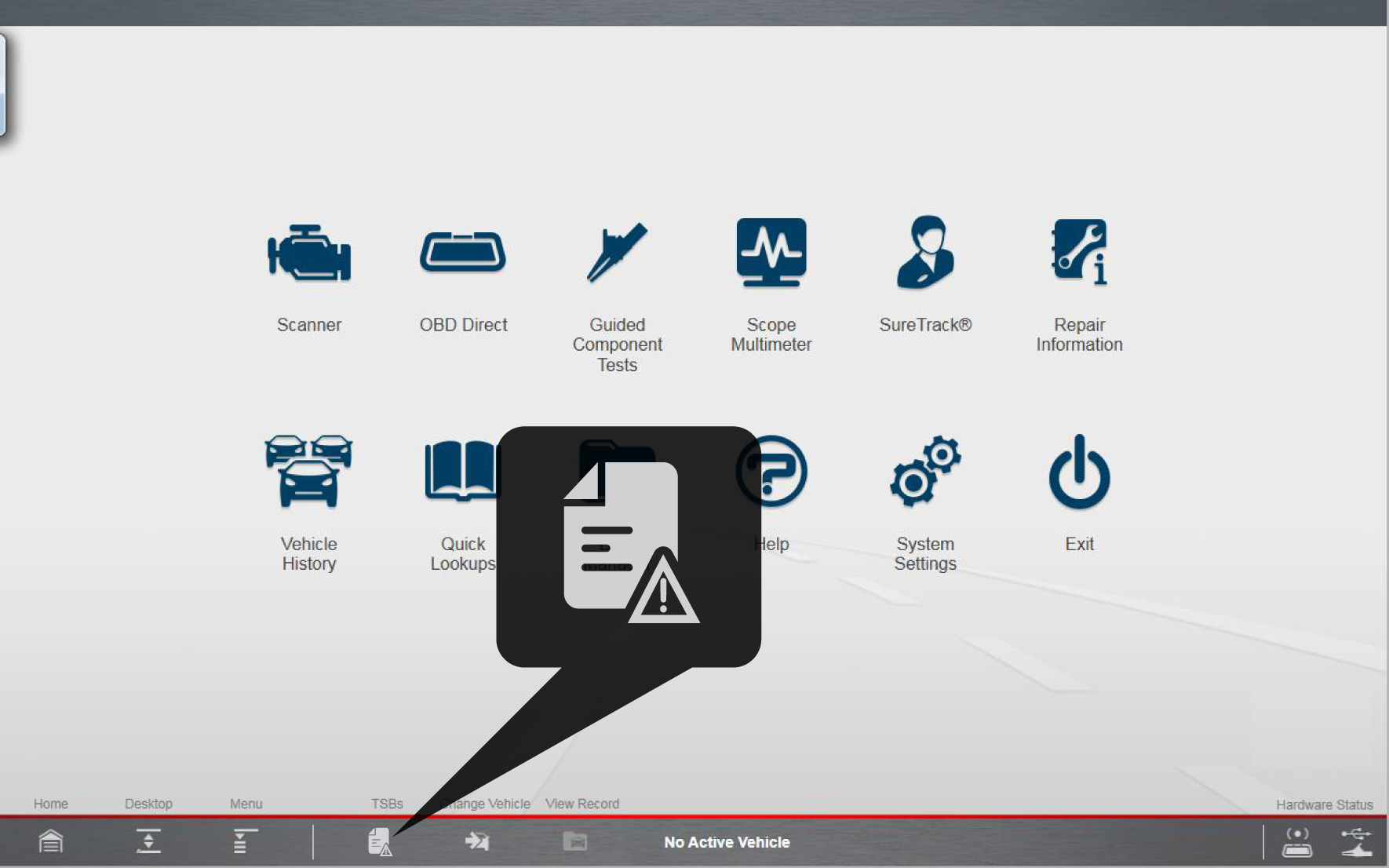

TSBs Icon on toolbar menu (active)

Accessing TSBs (vehicle not identified or to change a vehicle):

If a vehicle has not been identified or you need to find TSBs for a different vehicle from the one that is identified, use the following procedure.

1.

If needed, select the Change Vehicle Icon , to clear the currently identified vehicle.

2.

Select the Quick Lookups icon from the Home screen.

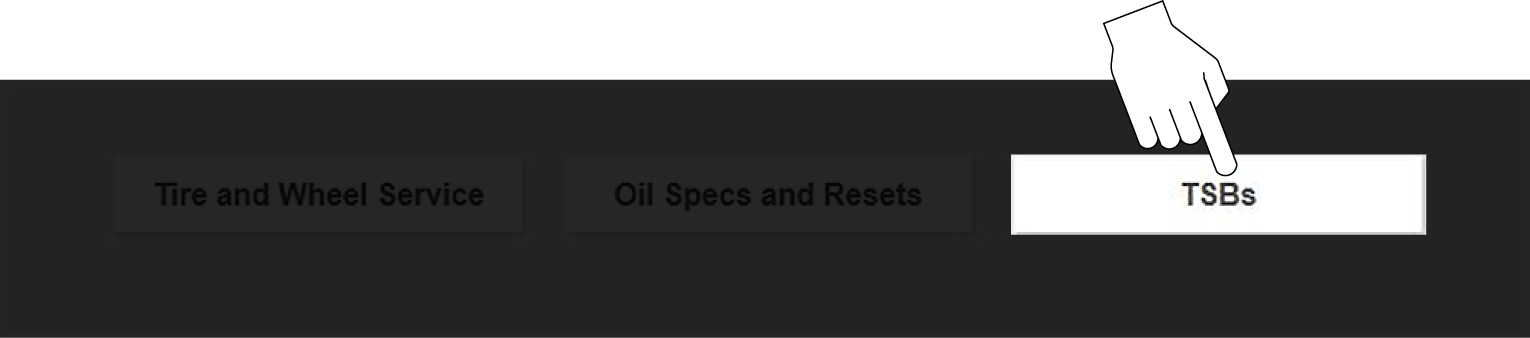

Quick Lookups Icon and Change Vehicle Icon

3.

Select TSBs from the menu.



4.

Follow the screen prompts and select the vehicle Year, Manufacturer and Model.

To create a favorites list, see Creating a favorites list:

5.

Confirm the vehicle, then press OK.

To select TSBs, see the next section Using the TSBs function:

Using the TSBs function:

Available information (e.g. Technical Service Bulletins and recalls) is displayed in a list . Recalls and other safety related documents are typically displayed at the top of the list by category. TSBs and other service related information are categorized by system and components.

1.

Select a category from the list, or perform a search using keywords.

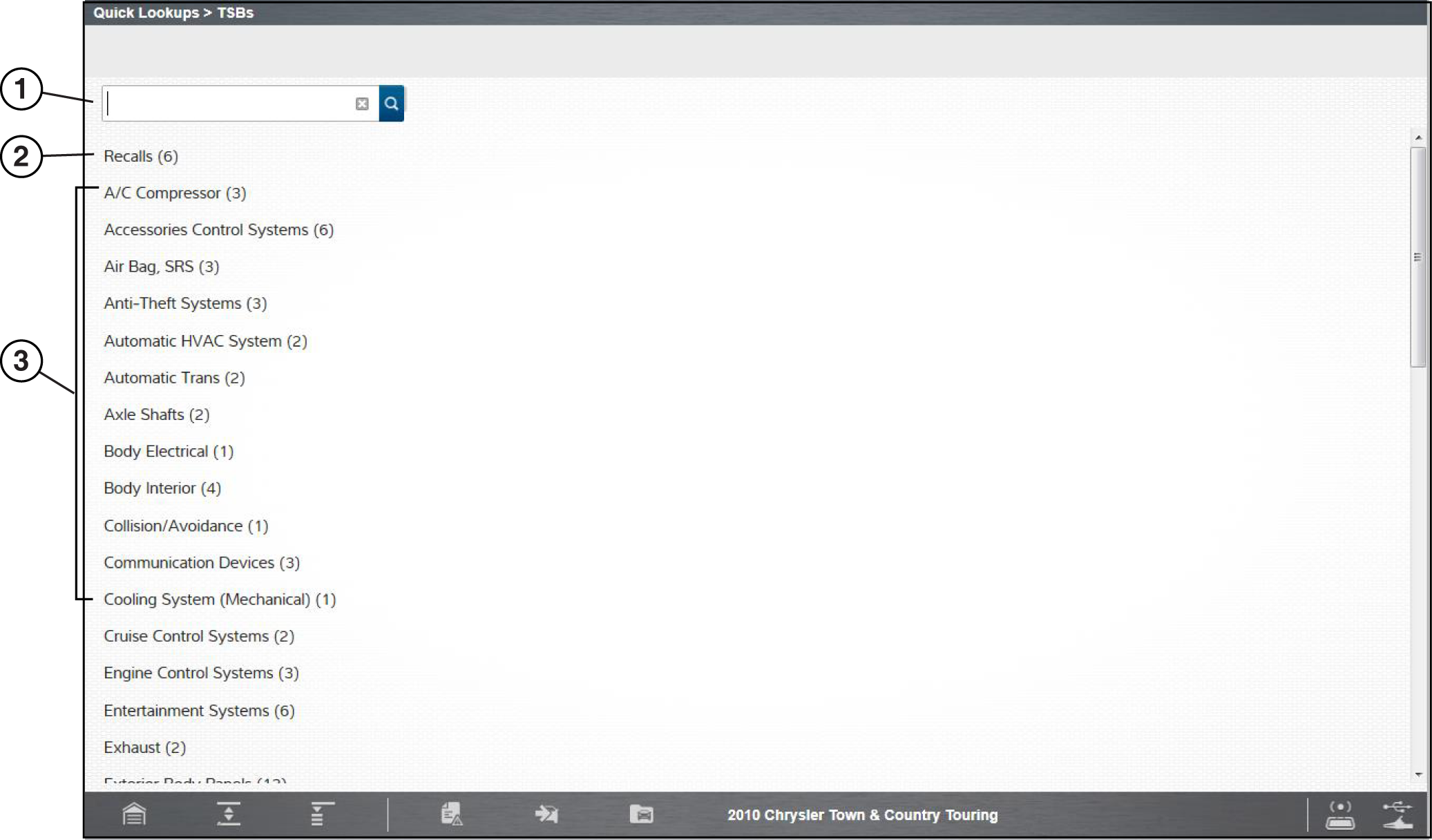

Typical - TSB list display

1.

Search Box

2.

Recalls

3.

Categorized TSBs Information

When a category is selected, the results (links) are displayed . A description, publish date and OEM reference number are provided for reference.

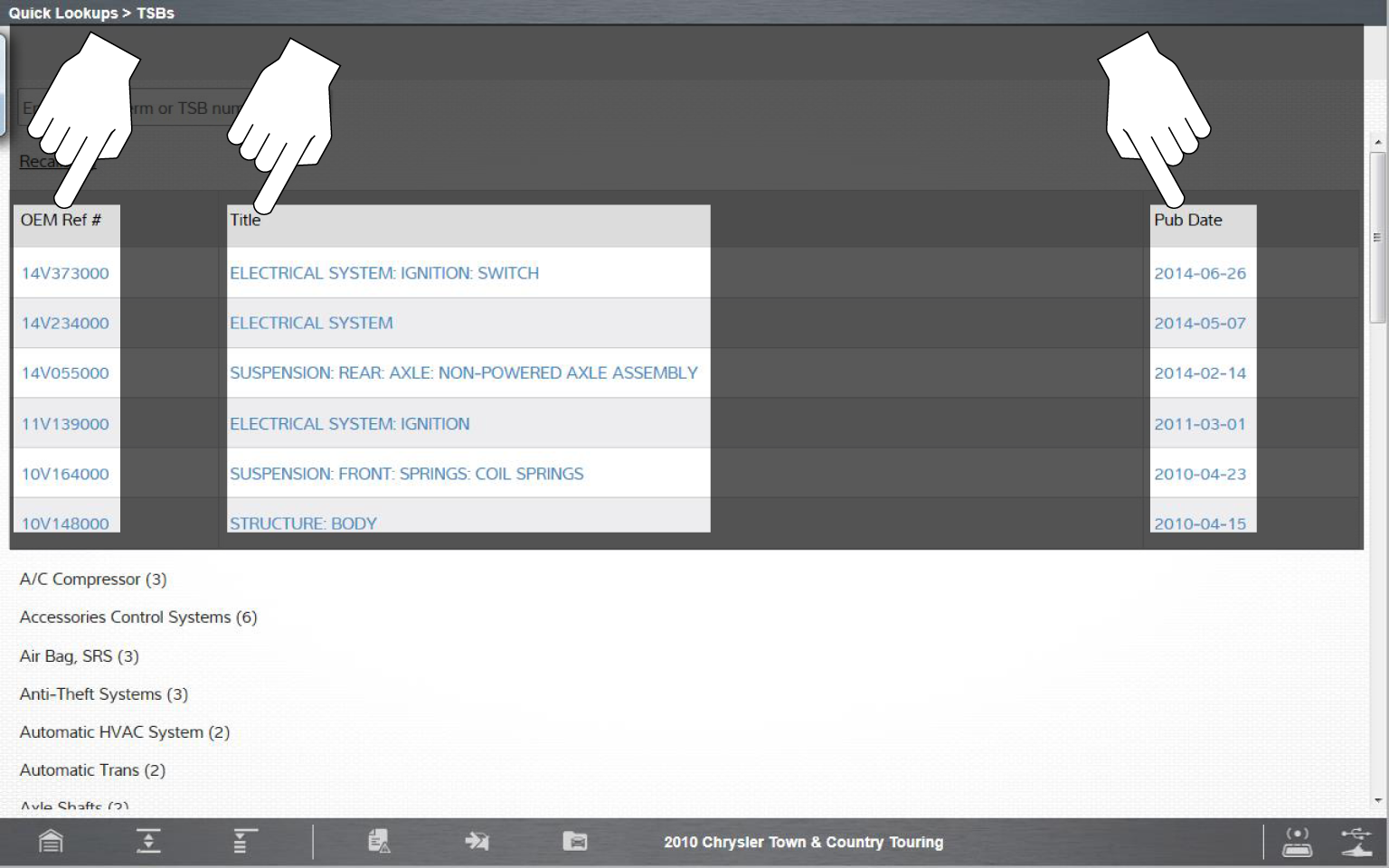

Typical - TSBs links displayed

2.

Select a link to display service information . Use the scrollbar to view all the contents of the window.

Typical TSBs information may include:

–

Vehicles involved

–

Service notes

–

Symptoms and Conditions

–

Diagnosis and Repair Procedures

–

Parts Required

–

Time Allowances

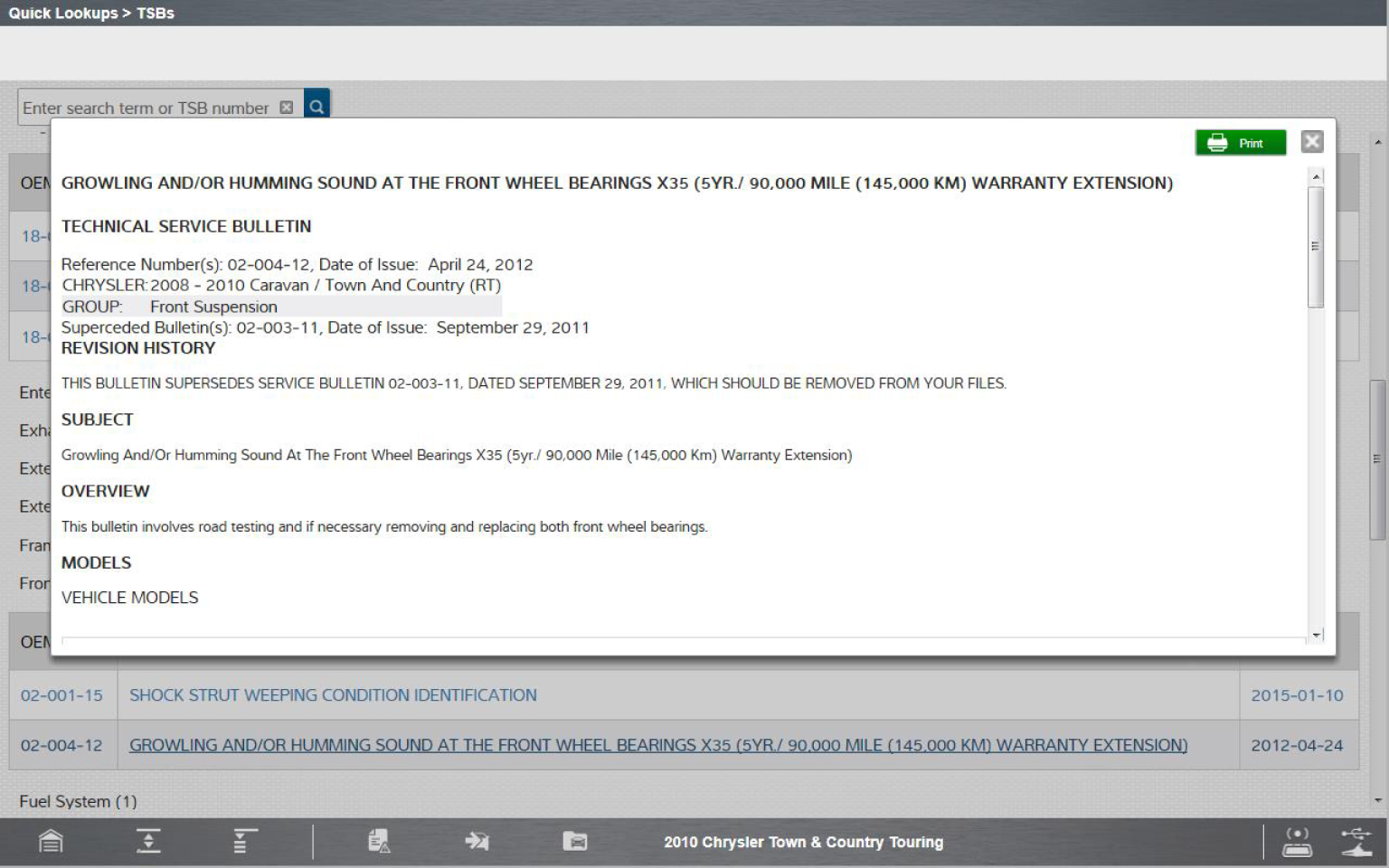

Typical - TSBs display window

Selecting the Print icon opens the print preview screen

Creating a favorites list:

1.

From the Vehicle Manufacturer selection window, select Configure Favorites from the menu.

The vehicle manufactures selection window opens .

2.

Select (highlight) the vehicle manufactures to include in your custom list.

3.

Select Finished.

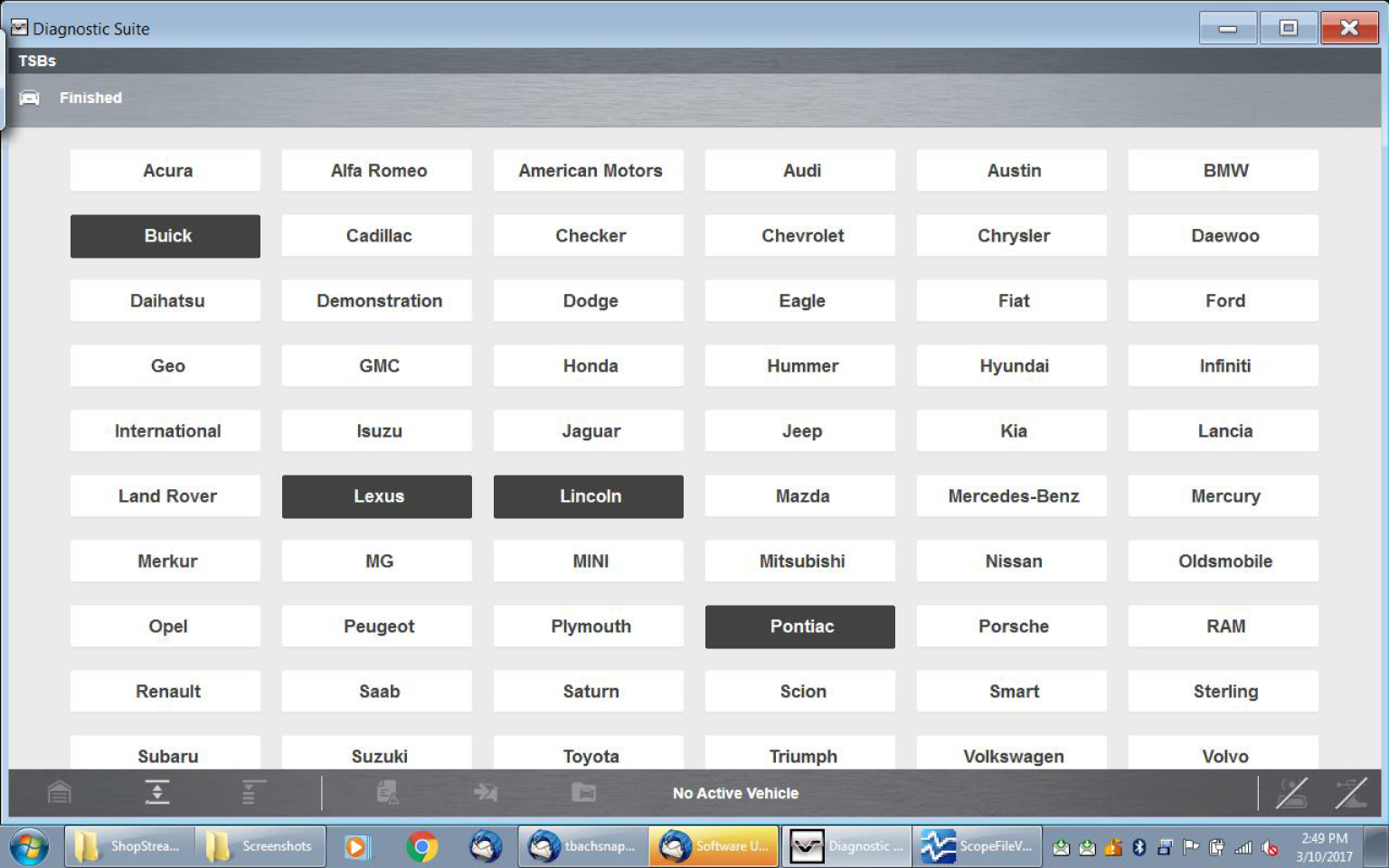

Typical - Configure favorites window

Tire and Wheel Service is located in the Quick Lookups main menu (Quick Lookups > Tire and Wheel Service).

Tire and Wheel Service provides OEM information on your diagnostic tool, via wireless network connection with our Snap-on Information Service. This feature allows you quick access to the following information:

●

Tire Pressure Monitoring System (TPMS) Indicator Reset Procedures

●

TPMS Relearn Procedures

●

Tire Pressure Sensor Removal/Installation Procedures

●

Tire Fitment Specifications

Tire and Wheel Service can also provide (when available) quick access to the following diagnostic functions when connected to a vehicle:

●

View and Clear TPMS Related Codes

●

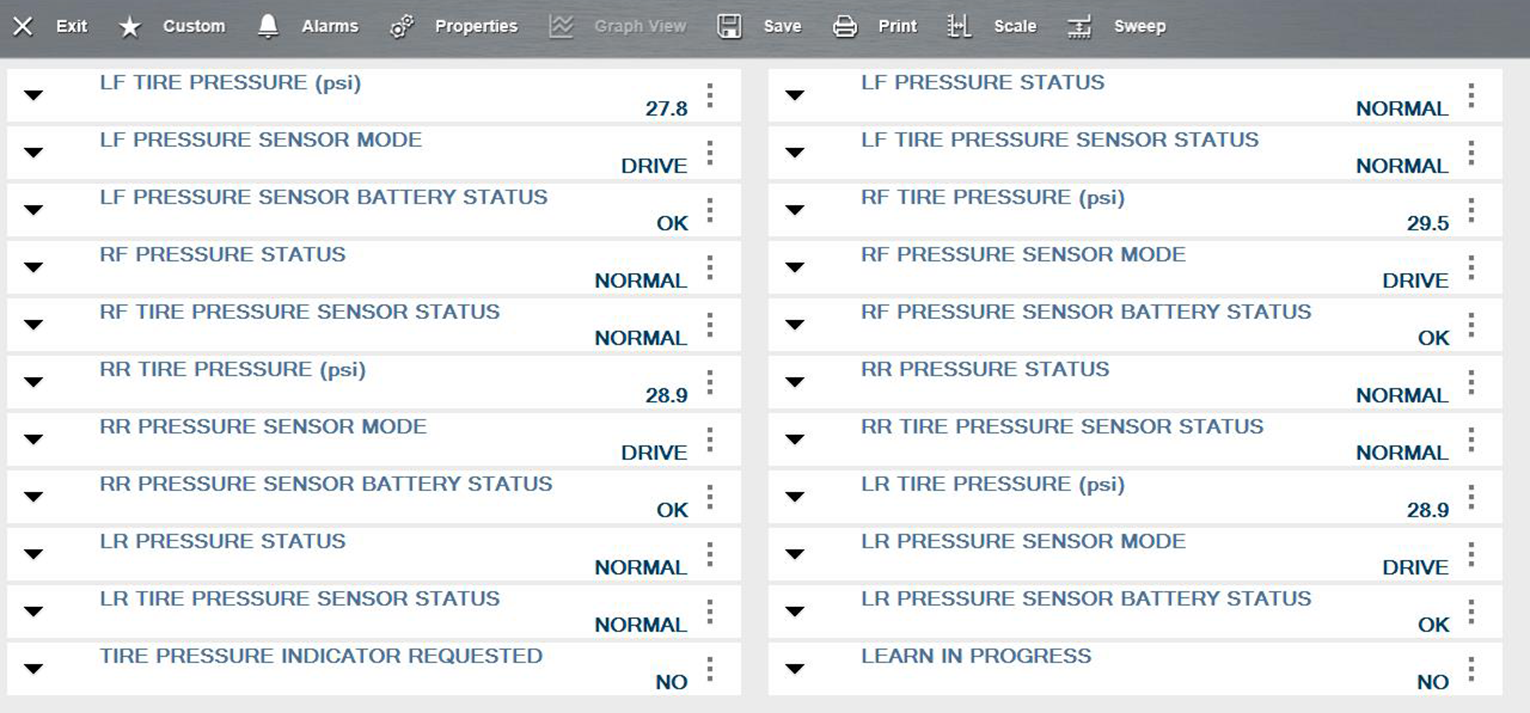

View TPMS Related Data

●

Perform TPMS Related Functional Tests

●

View TPMS Troubleshooter Information

— Tire and Wheel Service vehicle coverage is the same as the Scanner vehicle coverage.

— Not all vehicles may have on-board diagnostic tool reset capabilities, or have information available.

— If you experience a wireless network connection loss, Tire Service information will not refresh and/or may cause the function to stop. To continue use, you must re-establish your Internet connection.

— Performance may vary depending on your wireless network equipment and ISP.

Operation

The information and procedures provided by the Tire and Wheel Service function is vehicle specific, therefore a vehicle must be identified before information can be displayed.

There are two methods to access this function:

●

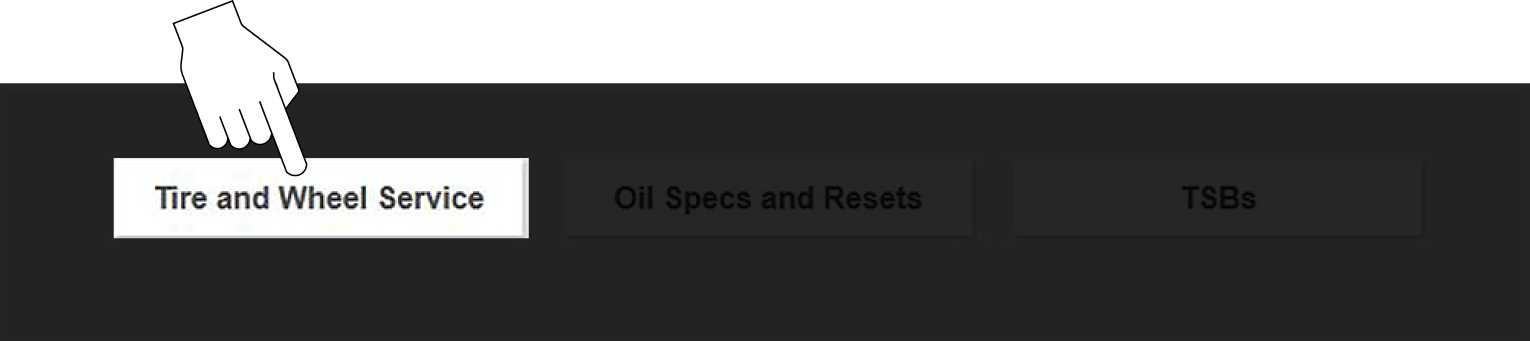

From the Home screen - select the Quick Lookups icon , then select Tire and Wheel Service, then proceed to Step 1 below.

●

From within a current Scanner session - select Tire and Wheel Service (or applicable choice) from the System menu, then proceed to Step 3 below.

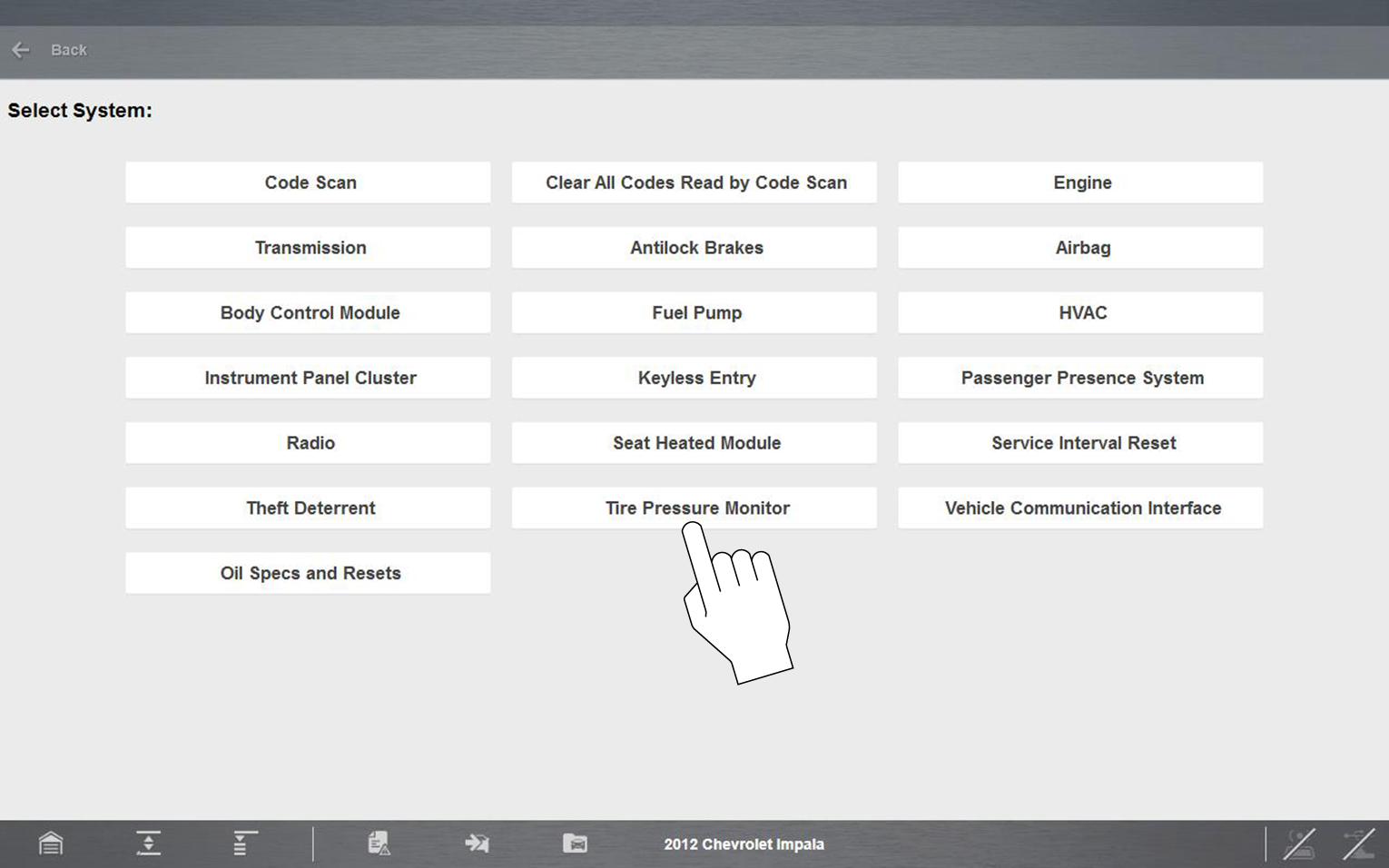

Scanner System Menu

1.

Follow the screen prompts to select the vehicle, Manufacturer, Year and Model.

2.

Select OK to confirm the vehicle.

3.

After the TPMS Reset instruction screen displays, you can navigate to other options as needed,.

Depending on the active function, descriptive information is displayed in the main body of the screen. If applicable, use the scroll bar to scroll up/down to view all of the information.

The following provides a brief description of the related Tire and Wheel Service toolbar icon functions. Detailed descriptions are provided in the following sections.

Icon	Name	Description

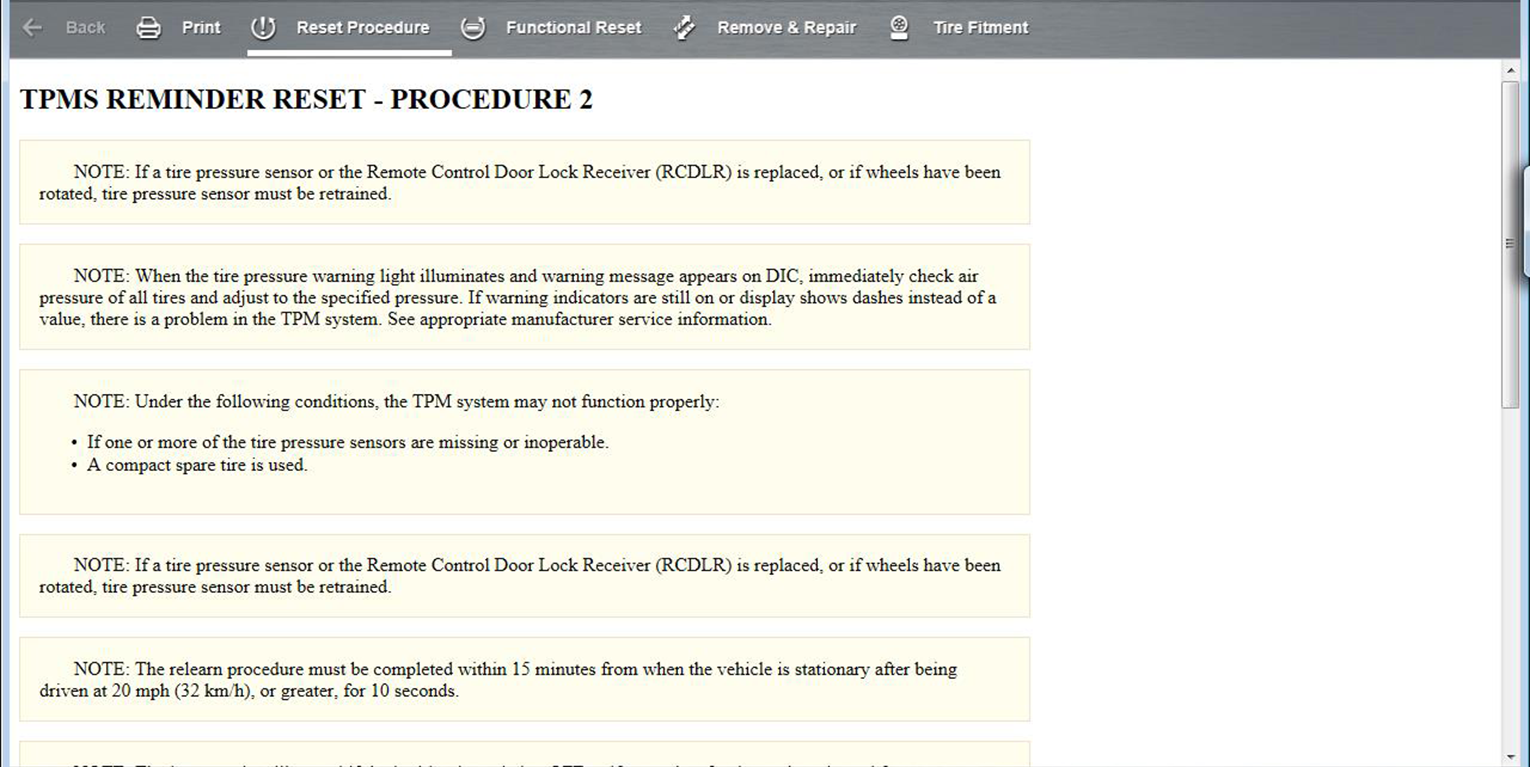

	TPMS Indicator Reset	Displays TPMS indicator reset instructions, to perform a manual reset of the TPMS indicator. See TPMS Indicator Reset (below).

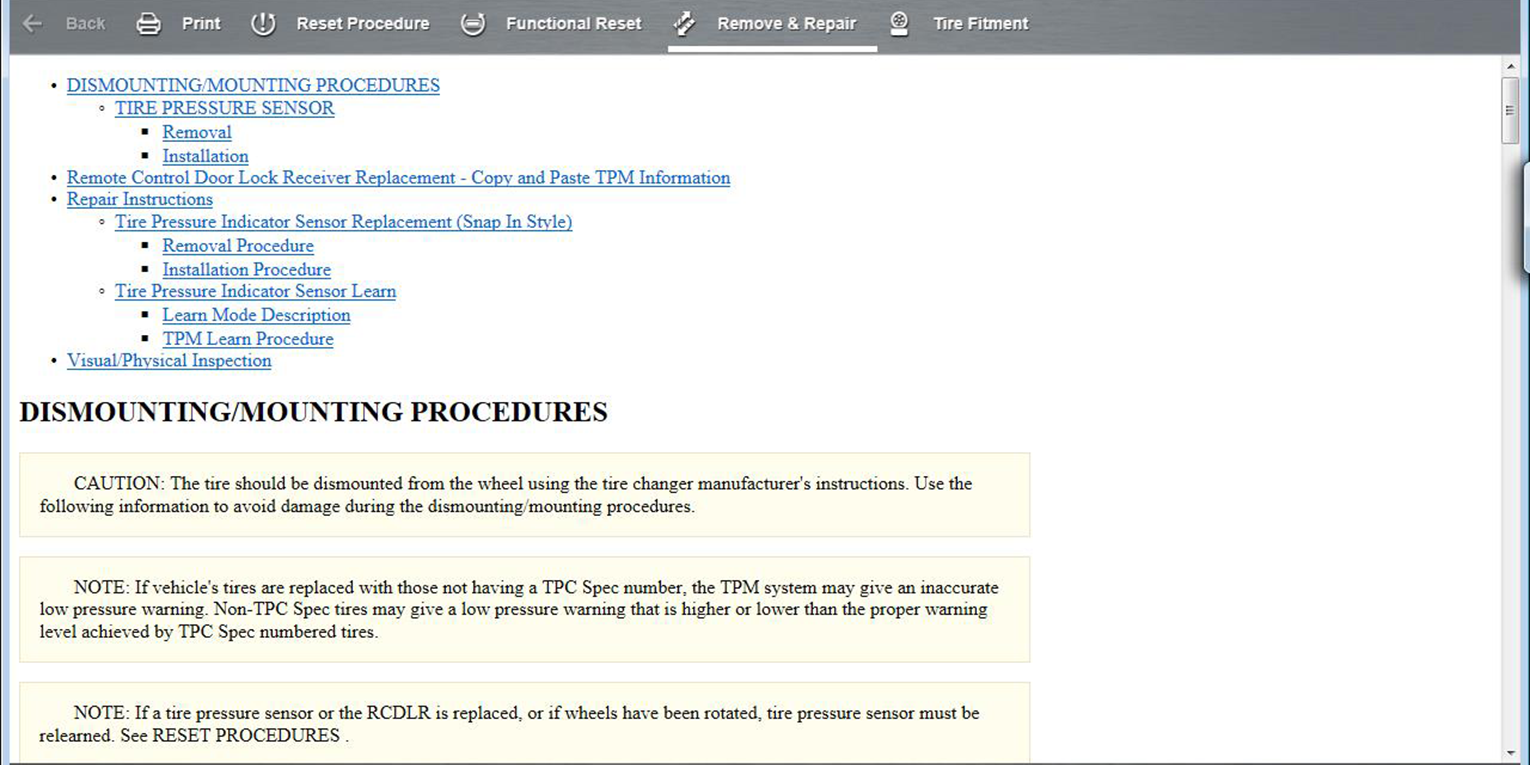

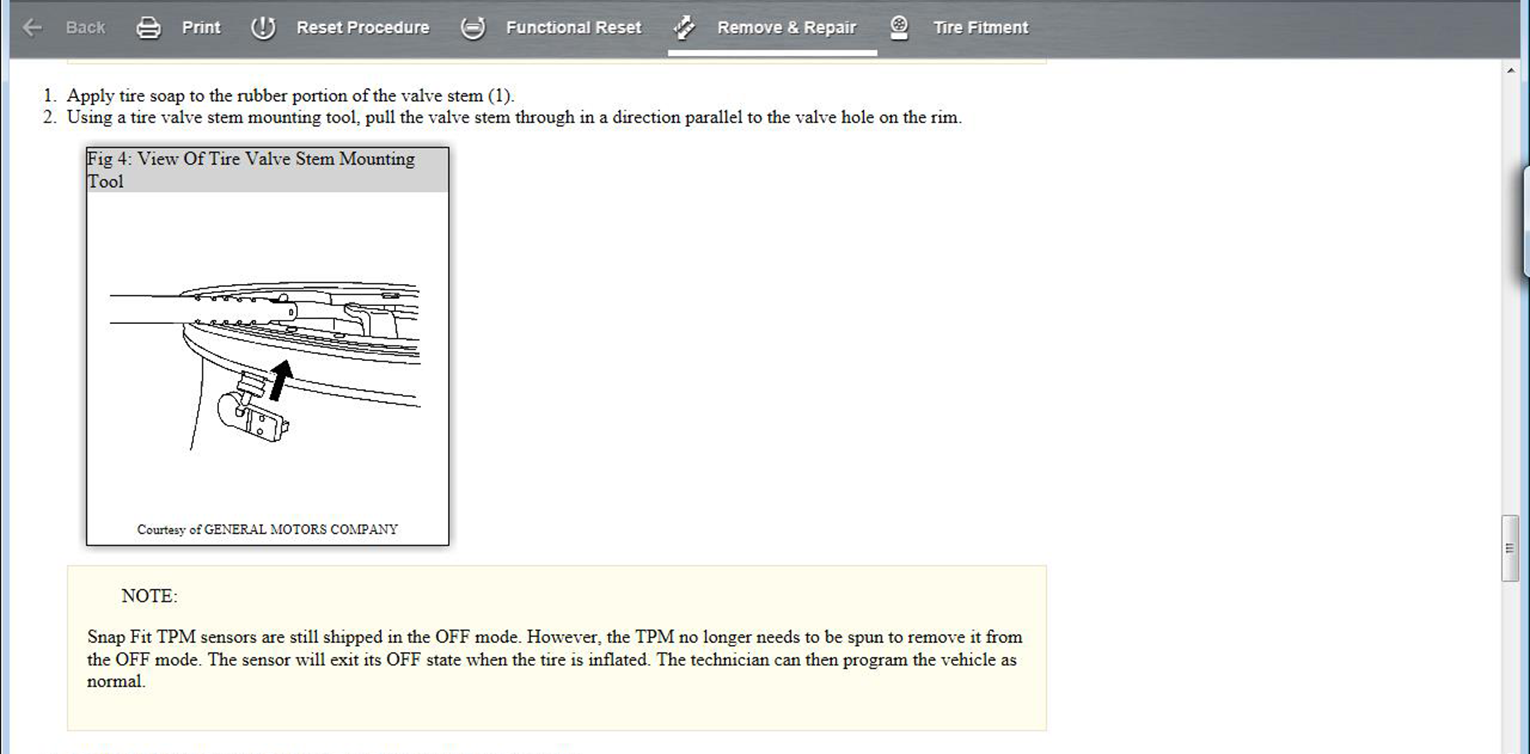

	Remove and Repair (TPMS Service)	Displays TPMS service information. See TPMS Indicator Reset (below).

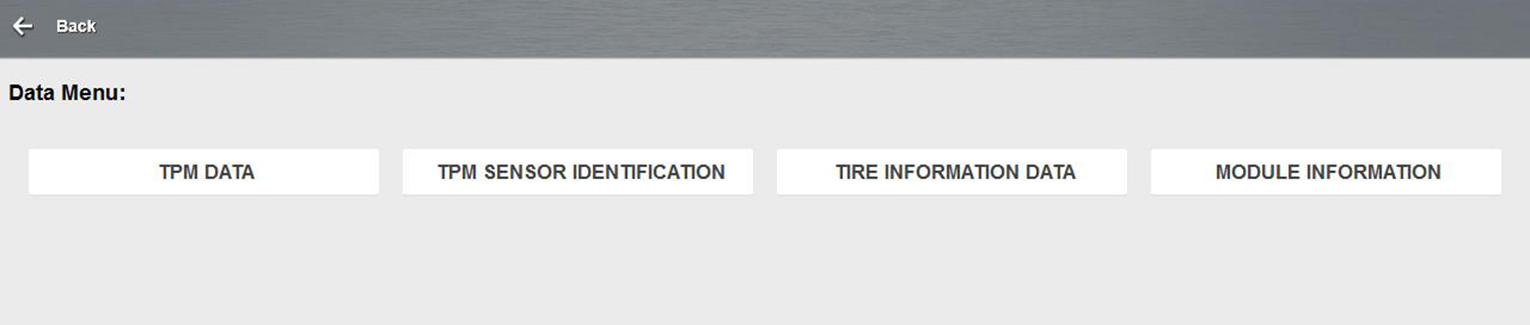

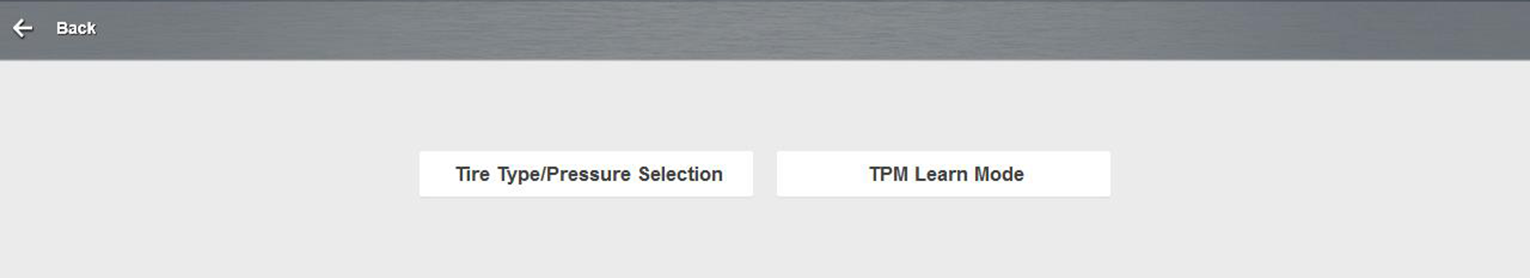

	Scanner Functions	Opens the TPMS test related Scanner menu. Options may include, view and clear codes, display data, and access functional tests using the diagnostic tool.
	Tire/Wheel Specifications (Fitment)	Displays OEM tire and wheel specifications.
